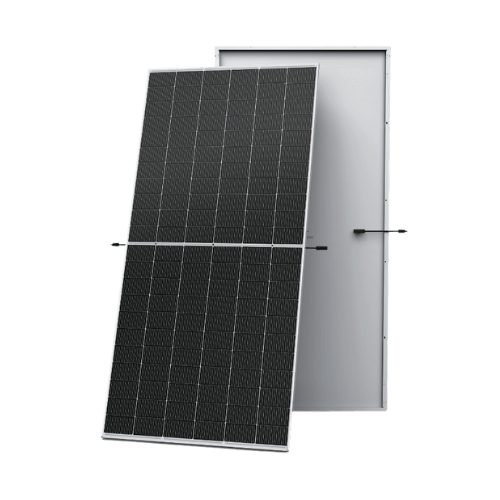

Trina Solar 615W TSM-NE19R.70 Vertex N (30 mm)

The Trina Solar 615W Vertex N (TSM-NE19R.70) is an N-type i-TOPCon monocrystalline solar panel engineered for maximum efficiency, reliability, and ease of installation. Built on Trina’s proven 210mm wafer platform, this panel delivers up to 23.0% efficiency and 615W of output power, making it ideal for a wide range of projects.

Designed for commercial, industrial (C&I), and utility-scale applications, the Vertex N 615W offers installers lower balance-of-system (BOS) costs, faster installation, and enhanced energy yield in real-world conditions.

Model: TSM-NE19R.70

Key Specifications

ELECTRICAL DATA (STC )

Peak Power Watts-P MAX: 615W
Maximum Power Voltage -VMPP: 41.1V
Maximum Power Current-IMPP: 14.98A
Open Circuit Voltage – VOC: 49.3V
Short Circuit Current – ISC (A): 15.89A
Maximum Efficiency: 22.8%
Positive Power Tolerance: 0 ~ +3%

ELECTRICAL DATA (NOCT )

Maximum Power Voltage -VMPP: 38.6V
Maximum Power Current-IMPP: 12.19A
Open Circuit Voltage – VOC: 46.8V
Short Circuit Current – ISC (A): 12.80A

Cell Technology: N-type i-TOPCon monocrystalline
Operating Temperature Range: -40°C to +85°C
System Voltage: 1500V DC (IEC)
Connector Type: MC4 EVO2 / TS4 Plus / TS4
Max Series Fuse Rating: 30A
Module Dimensions: 2382 × 1134 × 30 mm
Weight: 27.7 kg

Product Benefits

Up to 22.8% efficiency and 615W output maximise energy harvest in limited spaces.
Reduces electron recombination, contact resistance, and enhances rear reflection for higher performance
Minimises micro-cracks through non-destructive cutting, and reduces hot spots with half-cut cell technology.
Low-voltage design enables higher string power, reducing balance of system (BOS) costs by 1-5% and lowering the levelized cost of energy (LCOE).
High container space utilisation and standardised module size optimise logistics and simplify system design.
Maintains strong output in cloudy or low-light conditions, validated by third-party testing.
Low temperature coefficient (-0.29%/°C) ensures better performance and less efficiency loss at higher operating temperatures.
Industry-leading 12-year product warranty and 25-year power output guarantee for investment confidence.

The Trina Solar 615W Vertex N is part of Trina’s proven Vertex N series, designed for commercial and industrial (C&I) rooftops, residential applications, and larger projects. Its high-voltage 1500 V DC capability makes it suitable for both small and large system designs, reducing overall BOS costs for utility-scale projects.
