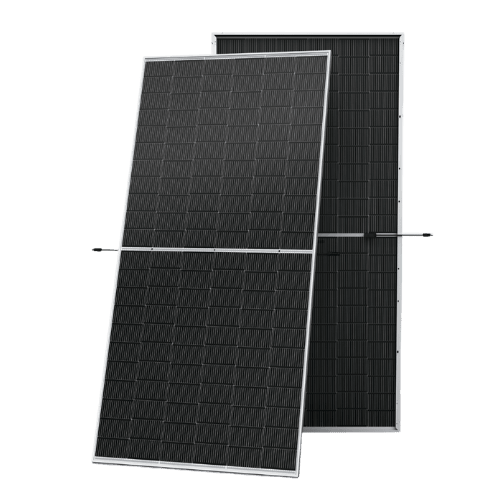

Trina Solar 615W Bifacial Vertex N

The 615W Trina Solar Vertex N is a high-efficiency bifacial solar module designed for large-scale commercial, industrial, and utility applications. Built on Trina Solar’s advanced N-type i-TOPCon cell technology, this module delivers high energy yield, improved reliability, and long-term performance.

With up to 23% efficiency, the 615W module maximises power density while maintaining a standard module size for optimised logistics and installation. The bifacial dual-glass design lets the module capture extra energy from the rear side, delivering 5–10% more power depending on site conditions.

Model: TSM-NEG19RC.20

Key Specifications

ELECTRICAL DATA (STC )

Peak Power Watts-P MAX: 615W
Maximum Power Voltage -VMPP: 39.97V
Maximum Power Current-IMPP: 15.39A
Open Circuit Voltage – VOC: 48.29V
Short Circuit Current – ISC (A): 16.20A
Maximum Efficiency: 22.8%
Power Tolerance-PMAX (W): 0 ~ +5

ELECTRICAL DATA (NOCT )

Maximum Power Voltage -VMPP: 37.80V
Maximum Power Current-IMPP: 12.43A
Open Circuit Voltage – VOC: 45.90V
Short Circuit Current – ISC (A): 13.05A

Cell Technology: N-type i-TOPCon Monocrystalline
Operating Temperature Range: -40 ~ +70°C
System Voltage: 1500V DC (IEC)
Connector Type: TS4 Plus / TS4
Max Series Fuse Rating: 35A
Module Dimensions: 2382 × 1134 × 30 mm
Weight: 33.0 kg

Product Benefits

615W power rating enables fewer modules per installation. This reduces racking, wiring and labour costs, while achieving the same system capacity.
Trina’s i-Topcon cell architecture improves conversion efficiency and reduces degradation. Secondly, it provides better long-term performance than traditional technologies.
Bifacial design allows the module to generate additional energy from reflected light; consequently, this increases total system output by 10-20%, depending on installation conditions.
The module’s high power density and optimised voltage design reduce the cost of balancing the system while improving the overall return on investment.
Engineered to withstand salt, ammonia, sand, PID and extreme weather, making it suitable for coastal, agricultural and industrial installations.
Lastly, the dual-glass construction enhances durability and protects cells from moisture and mechanical stress, backed by a 30-year performance warranty.
