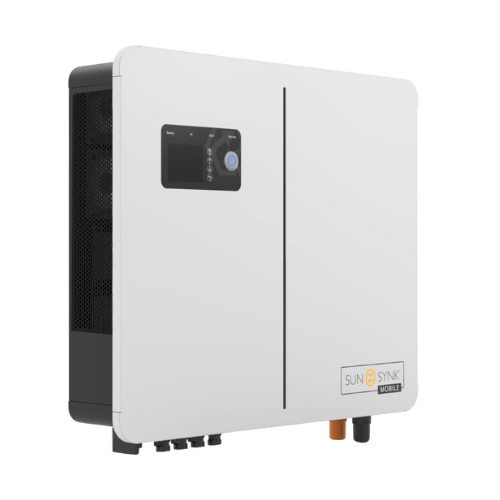

Sunsynk Powerlynk Lynks 8kW

The Sunsynk Lynks 8kW Hybrid Inverter is a powerful, high-capacity hybrid inverter designed for larger households and light commercial applications with higher energy demands. With dual MPPT inputs, rapid switch-over capability, and intelligent energy management, the Lynks 8kW ensures stable performance and efficiency, even when powering demanding loads like air conditioners, water pumps, and EV chargers.

Compatible with both lithium and lead-acid batteries, this inverter provides a flexible, future-ready solution for installers and homeowners seeking greater solar energy independence.

Key Specifications

Rated Power Output: 8kW (8000W)
Surge/peak Output: 16kVA
PV Input: 2 x MPPT, up to 5000W each (10,000W total)
Maximum PV Voltage: 550V DC
MPPT Efficiency: 99.5%
Battery Input Voltage: 48V (40V–60V range)
Battery Charging Current: Up to 150A
Battery Discharge Current: Up to 180A
Conversion Efficiency: Up to 97.6% (Euro efficiency 97.6%)
Backup Switch-over Time: 10ms (true UPS capability)
IP Rating: IP41 (indoor installation)
Operating Temperature: -20°C to +50°C
Dimensions: 570 x 525 x 140 mm
Weight: ~24.5kg

Product Benefits

Supports larger load demands and high surge power needed for bigger homes and EV chargers
Faster battery charging and higher discharge capacity provide more power when required.
Compatible with a wide range of batteries and features direct BMS communication to maximise efficiency and lifespan
Twin MPPT technology independently optimises panel strings for maximum energy harvest, even with shading or complex roof layouts.
Fast 10 ms backup ensures critical home appliances stay powered without interruption.
Comprehensive built-in safety protections safeguard equipment and the home from electrical faults.
Scalable battery capacity from 100 to 2,000 Ah for flexible storage solutions.
Standard 5-Year warranty extendable to 10 years with BSL Battery pairing.

Why Choose the Sunsynk Powerynk Lynks 8kW?

For solar installers, the Sunsynk Powerlynk Lynks 8kW is a cost-effective, high-performance hybrid inverter designed for seamless integration, easy installation, and long-term profitability. The Sunsynk Lynks 8kW Hybrid Inverter is designed for larger residential setups or commercial applications that demand higher energy capacity and flexibility. Its advanced management features make it ideal for future expansion, including EV charging integration. With high efficiency, smart controls, and robust safety standards, it provides installers and end-users with a premium solar energy solution that is reliable, scalable, and built to last.
