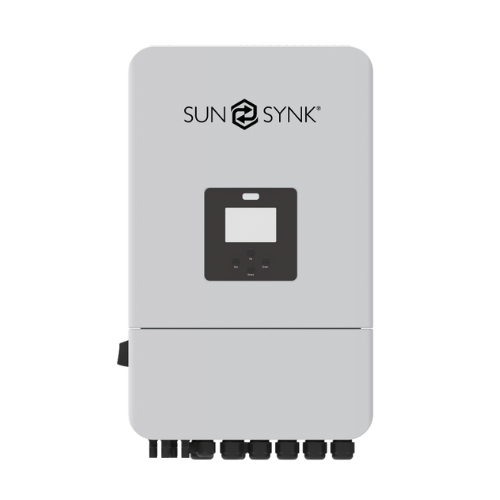

8kW Sunsynk Compact Single-Phase Hybrid Inverter

The 8kW Sunsynk Compact is a powerful and versatile single-phase hybrid inverter, designed for residential and small commercial solar PV systems. Combining advanced Maximum Power Point Tracking (MPPT) technology, seamless energy management, and compatibility with both lead-acid and Li-Ion battery types, this inverter offers optimised energy yield and reliability. Its robust design ensures high efficiency and durability even under demanding conditions.

This Sunsynk compact supports a broad range of PV input configurations and battery systems, simplifying system design and installation.

Model: SYNK-8K-SG05LP1-SM2

8kW Sunsynk Compact Single-Phase Hybrid Inverter

Key Specifications

Rated Output Power: 8,000W (8kVA)
Battery Compatibility: Lead-acid & Li-ion, 48V (40V – 60V range)
Max. Charging/Discharging Current: 190A DC
Max. PV Input Power: 12,800W
Max. PV Access Power: 16,000W
MPPT Voltage Range: 150V – 425V (Full load: 200V – 425V)
No. of MPPTs / Strings: 2 / 2+2
PV Input Voltage Range: 124V – 500V
Max. Continuous AC Passthrough (grid to load): 50A
Peak Power (Off-Grid): 2 × rated power for 10 seconds
Efficiency: Max. 97.6%, Euro 96.5%, MPPT >99%
Protection: Integrated lightning protection, anti-islanding, reverse polarity, residual current monitoring, short-circuit & overcurrent protection
IP Rating: IP65
Operating Temperature Range: -40°C to +60°C, >45 ºC Derating
Dimensions (W × H × D): 366 × 589.5 × 237 mm
Weight: 25.2 kg
Warranty: 5 years standard warranty

Product Benefits

8kW continuous AC output suitable for most residential and small commercial PV systems.
Integrates solar generation, battery storage, and grid interaction for reliable energy management and backup.
Supports both lead-acid and lithium-ion batteries with adaptive BMS integration.
Supports up to 12.8kW PV input with peak surge capability for demanding loads.
Dual MPPT Trackers facilitate better energy harvest from multiple PV orientations or shading conditions.
IP65-rated enclosure enables installation outdoors.
Intelligent thermal management extends the lifespan of the inverter and ensures consistent performance.
Certified to NRS 097-2-1 and international safety standards, ensuring compatibility with local regulations.

The Sunsynk SYNK-8K-SG05LP1-SM2 is part of Sunsynk’s latest generation of single-phase hybrid inverters, developed to meet the growing demand for flexible, high-efficiency energy solutions.
