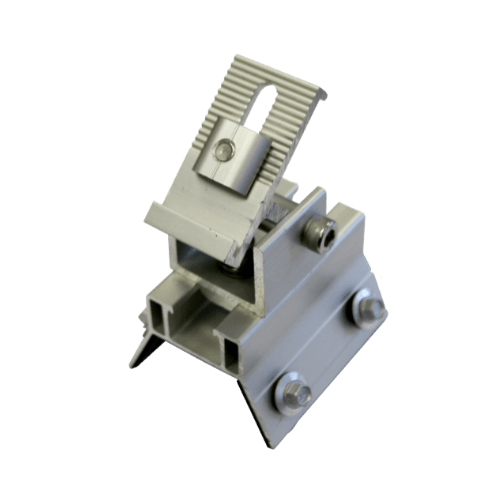

The Lumax Universal IBR Solar Panel Mounting Bracket is a purpose-built mounting accessory engineered for secure attachment of framed photovoltaic (PV) solar panels onto IBR-profile metal roofs. It clamps or bolts onto the ribbed sheet metal profile (without the need for major roof structure changes) and provides a stable base for mounting solar rails or a direct rail-less mounting system.
Once installed, this bracket serves as the structural link between the roof sheeting and the solar panel array, ensuring correct panel alignment, load distribution, and weather-resistant sealing even under wind, rain, or temperature variation.
Material: 3CR12 Stainless Steel (weather and corrosion-resistant)
Compatibility: Designed for IBR ribbed metal sheeting; supports portrait and landscape orientation
Hardware: Includes EPDM gaskets for a waterproof seal; uses self-tapping screws or bolts
The high shear and tension strength ratings ensure the solar array remains stable and secure. Even under significant wind loads, it provides peace of mind for both the installer and the system owner.
Support for various orientations, allowing installers to standardise on a single bracket model for many projects.
The use of 3CR12 Stainless Steel and EPDM gaskets provides exceptional long-term reliability in diverse climates.
A straightforward screw-down design enables quick, efficient installation. This saves valuable labour time and enables faster project completion on residential, commercial, or remote job sites.
Compatibility with both traditional rail and modern rail-less systems gives system designers greater flexibility to optimise for cost, complexity, and performance based on project-specific requirements.
The bracket is perfectly suited for retrofitting solar onto existing IBR roofs without requiring major structural modifications, expanding the potential market for installers into a large base of existing buildings.
