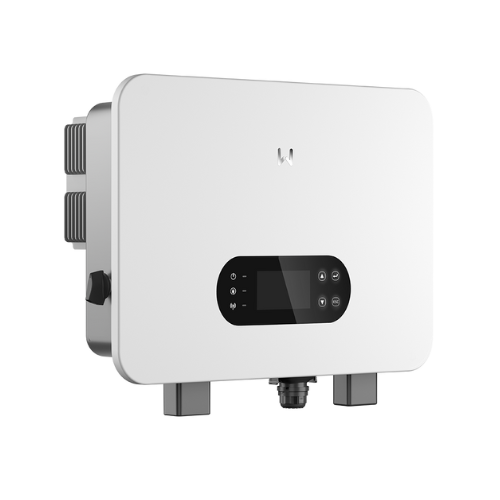

GoodWe ES Uniq Series

The GoodWe ES Uniq Series is a single-phase, low-voltage hybrid inverter designed specifically for residential photovoltaic (PV) systems. Available in power capacities 6kW, 8kW, 10kW and 12kW, it acts as the intelligent hub of your energy system, seamlessly managing power from solar panels, batteries, the grid, and even backup generators.

With its 200% PV oversizing capacity, fast <4ms backup switching, and IP66 weatherproof rating, the ES Uniq Series
ensures reliable performance in all conditions. The ES Uniq series supports both on-grid and off-grid configurations and offers scalable options with parallel connections for expanding power capacity.

Key Specifications

Nominal Output Power: 6kW, 8kW, 10kW, or 12kW
Nominal Battery Voltage: 48V (40–60V operating range)
Max. Continuous Charging/Discharging Current: up to 240A (12kW model)
Max. Charging/Discharging Power: up to 12kW / 13.2kW
PV Oversizing: Up to 200% of inverter capacity
Max. PV Input Power: 12kW (6kW inverter) up to 24kW (12kW inverter)
Number of MPPTs: 2, with max. 32A per MPPT (larger models)
Max. Efficiency: 97.6% | European Efficiency: 96.2%
MPPT Efficiency: 99.9%
Backup Switching Time: <4 milliseconds
Protection Rating: IP66 (outdoor-ready)
Parallel Operation: Up to 6 inverters in parallel
User Interface: LCD touchscreen + WLAN/App connectivity
Communication: RS485, CAN, WiFi, LAN, Bluetooth (Modbus-RTU & Modbus-TCP)

Product Benefits

<4ms transfer keeps lights, appliances, and sensitive electronics running without interruption.
3-in-1 port integrates generator, smart loads, and on-grid inverter.
IP66-rated housing ensures long-lasting outdoor performance.
Advanced safety protections, including AFCI, anti-islanding, surge protection, insulation monitoring, and an integrated DC switch.
Full system visibility via SolarGo App, WiFi, LAN, or Bluetooth.
Supports up to 200% PV input oversizing, allowing more solar panels to maximise energy harvest even in low sunlight.
Compatible with multiple battery brands and types, offering various storage options ranging from modern lithium-ion to traditional lead-acid.
Can operate within a microgrid with other PV inverters and supports an integrated generator and smart load control via a three-in-one port.
