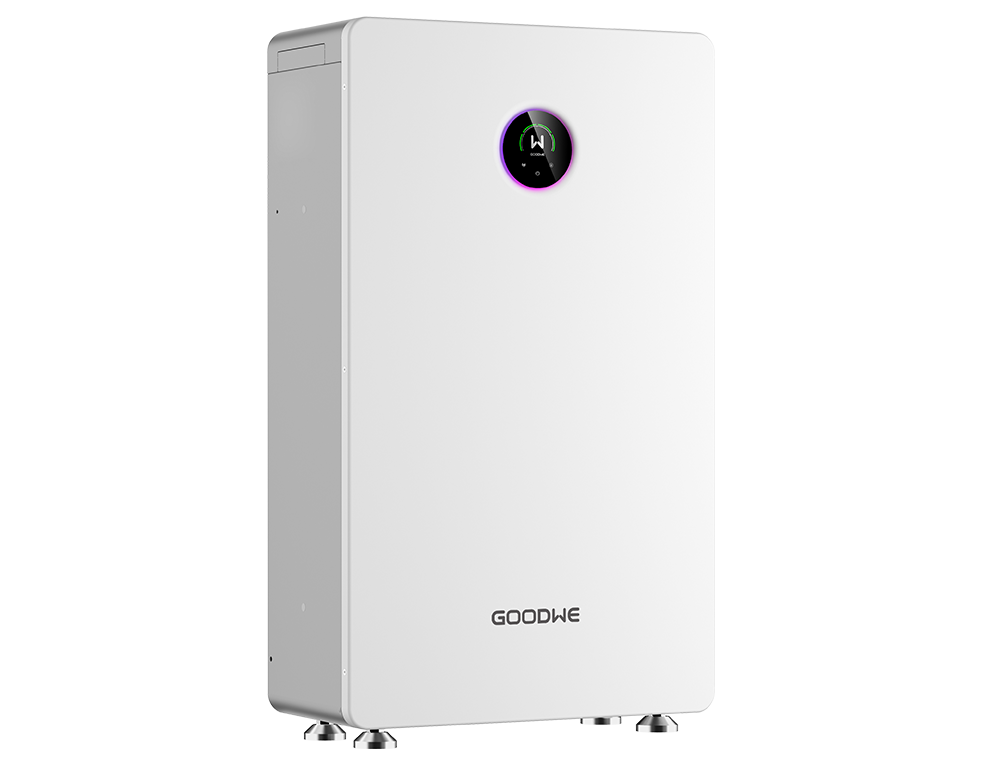

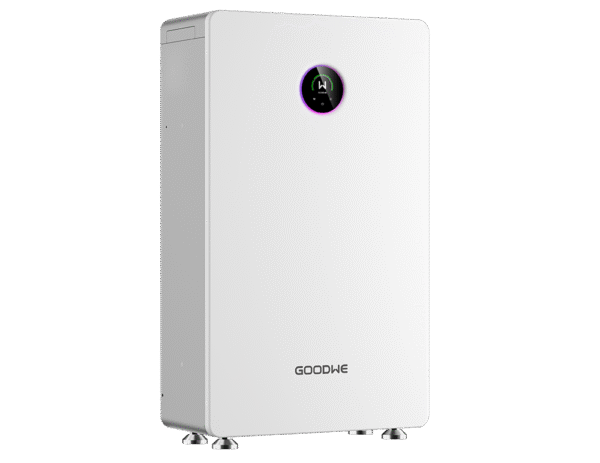

GoodWe BAT Series 14.3kWh

The GoodWe BAT Series 14.3kWh battery is a high-capacity, low-voltage energy storage solution for residential solar energy systems. It enables homeowners to store excess solar power generated during the day and use it during peak hours or power outages. Designed to integrate seamlessly with GoodWe’s single-phase and three-phase low-voltage inverters, this battery provides dependable energy storage to manage your home’s power needs.

Built with 280Ah long-life cells rated for 6,500 cycles, the BAT Series delivers exceptional durability, offering up to 18 years of daily cycling. Its high charge/discharge rates ensure quick energy capture and fast response to household demand spikes, while optional low-temperature heating makes it reliable even in harsh climates.

Key Specifications

  • Rated Energy: 14.3kWh
  • Usable Energy: ≥13.8kWh
  • Nominal Voltage: 51.2V
  • Max Continuous Charge Current: 224A
  • Max Continuous Discharge Current: 260A
  • Max Input Power: 12kW
  • Max Output Power: 12kW (13.2kW for 10min; 20kW peak for 15s)
  • Cycle Life: ≥6,500 cycles (@ 100% DOD, 25°C)
  • Weight: 125kg
  • Dimensions (W × H × D): 530 × 885 × 246mm (without base)
  • Ingress Protection: IP20 (indoor installation)
  • Mounting: Floor-mounted or wall-mounted
  • Communication: CAN, RS485

Product Benefits

  • Stores surplus solar energy produced during daylight and use it anytime, reducing reliance on the grid and lowering electricity bills.
  • Supports up to 0.8C charging and 0.94C discharging rates, allowing fast energy flow without bottlenecks.
  • Handles continuous currents up to 224A charging and 260A discharging with peak power bursts up to 13.2kW for high starting loads like air conditioners and dryers without power dips or breaker trips.
  • Supports parallel connection for scalable storage, future-proofing your investment as your energy needs grow (e.g., adding EV charging or new appliances).
  • Delivers an impressive 6,500-cycle lifespan, translating to nearly 18 years of reliable performance, far exceeding typical battery alternatives.
  • Designed for optimal compatibility with GoodWe low-voltage inverters, minimising installation complexity and maximising system efficiency.



The GoodWe BAT Series 14.3kWh Low Voltage Battery is part of GoodWe’s complete home energy ecosystem, designed to work hand-in-hand with GoodWe inverters and monitoring platforms. It enables installers to deliver a scalable, future-ready residential storage solution while giving end-users the peace of mind of reliable backup power, lower bills, and long-term energy independence.

With its combination of high capacity, fast performance, long cycle life, and safety certifications, the BAT Series is an ideal choice for homeowners looking to maximise their solar investment.
