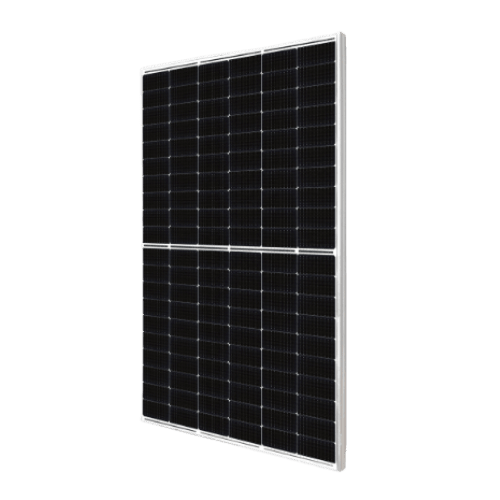

Canadian Solar 460W HiKu6 Mono PERC Panel

The Canadian Solar HiKu6 CS6L-MS 460W is a high-performance mono-crystalline solar module designed to deliver outstanding power output and long-term reliability for residential, commercial, and utility-scale installations. With a maximum power of up to 465W and module efficiency reaching 21.5%, this panel represents a perfect balance of cutting-edge technology and practical durability. Built with 120 half-cells arranged in a 2 × (10 × 6) configuration, the HiKu6 series minimises electrical losses and enhances shading tolerance.

Canadian Solar’s advanced LID/LeTID mitigation technology reduces degradation by up to 50%, ensuring more energy production over the panel’s lifetime. Whether you are looking to lower your levelized cost of energy (LCOE) or build a system that withstands harsh weather, the CS6L-MS 460W delivers superior performance and peace of mind.

Key Specifications

ELECTRICAL DATA (STC )

Peak Power Watts-P MAX: 460W
Maximum Power Voltage -VMPP: 34.8V
Maximum Power Current-IMPP: 13.24A
Open Circuit Voltage – VOC: 41.4V
Short Circuit Current – ISC (A): 14.00A
Maximum Efficiency: 21.3%
Power Tolerance (W): 0 ~ +10W

ELECTRICAL DATA (NOCT )

Maximum Power Voltage -VMPP: 32.6V
Maximum Power Current-IMPP: 10.58A
Open Circuit Voltage – VOC: 39.1V
Short Circuit Current – ISC (A): 11.29A

Cell Technology: Mono-crystalline
Operating Temperature Range: -40 ~ +85°C
Max. System Voltage: 1500V (IEC/UL) or 1000V (IEC/UL)
Connector Type: MC4 EVO2
Max Series Fuse Rating: 25A
Module Dimensions: 1903 × 1134 × 30 mm
Weight: 24.2 kg

Product Benefits

High module efficiency (up to 21.5%) and power output (460W) reduce the number of panels needed per installation, lowering balance-of-system and labour costs.
Canadian Solar’s comprehensive LID and LeTID technology reduces initial and long-term degradation by up to 50%, ensuring more energy yield over the module’s lifetime.
The half-cell design and optimised cell layout minimise power loss from partial shading, improving real-world energy harvest.
Lower BOS costs (cabling, mounting, labour) and improved container loading translate into better project margins.
Advanced manufacturing processes and robust mechanical design reduce the risk and propagation of micro-cracks, preserving long-term performance.
Certified to withstand heavy snow loads up to 5400 Pa, and wind loads up to 2400 Pa, making it suitable for harsh climates and ground-mount systems.
Backed by an Enhanced Product Warranty on materials and workmanship, plus a Linear Power Performance Warranty: maximum 2% degradation in the first year and no more than 0.55% annual degradation thereafter.
