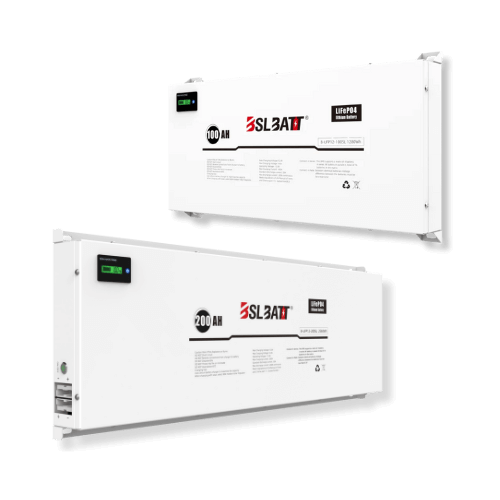

BSLBATT RV Flat Pack

The BSLBATT Ultra-thin LFP RV Energy Storage Battery, also known as the RV Flat Pack, is a replacement for bulky, short-lived lead-acid units in RVs, campervans, off-grid trailers, and mobile work vehicles. Compared to lead-acid batteries, the Flat Pack is a lightweight, compact, and highly efficient energy storage solution.

The LFP technology and ferroelectric core in the batteries deliver exceptional stability, longer cycle life, faster charging, and higher energy density in a slim form factor.

Key Specifications

(Available in two models: BLFP12-100S and BLFP12-200S)

Nominal Voltage: 12.8 V
Capacity:
- BLFP12-100S – 100 Ah (1.28 kWh)
- BLFP12-200S – 200 Ah (2.56 kWh)
Cycle Life: 4,000+ cycles @ 80% DOD
Voltage Range: 9.2 V – 14.6 V
Charge Voltage: 13.6 V – 13.8 V (recommended)
Max Charge Current:
- 100S – 100 A
- 200S – 200 A
Dimensions:
- 100S – 270 mm × 600 mm × 65 mm
- 200S – 275 mm × 850 mm × 70 mm

Product Benefits

Fits into shallow storage bays, under seats, and other tight spaces where traditional batteries will not.
Up to 30% smaller footprint and much lighter than equivalent lead-acid batteries.
More usable power from a compact, lightweight unit.
Supports high input currents for rapid top-ups via solar or AC chargers.
Over 4,000 cycles or a lifespan of 10 years (whichever comes first) with daily use, drastically reducing replacement frequency and total cost of ownership.
High surge capability, handles heavy appliance start-ups such as microwaves, coffee makers, and air conditioners without voltage drop when connected to an inverter.
Reliable discharge down to −20 °C for year-round travel and cold-weather camping.
Low internal resistance means less energy loss and cooler operation.

Why the BSLBATT RV Flat Pack?

The BSLBATT RV Flat Pack is a drop-in solution for upgrading RV, caravan, and mobile energy systems. It pairs seamlessly with solar charge controllers, inverters, and DC-DC chargers from major brands, making integration straightforward for installers.
