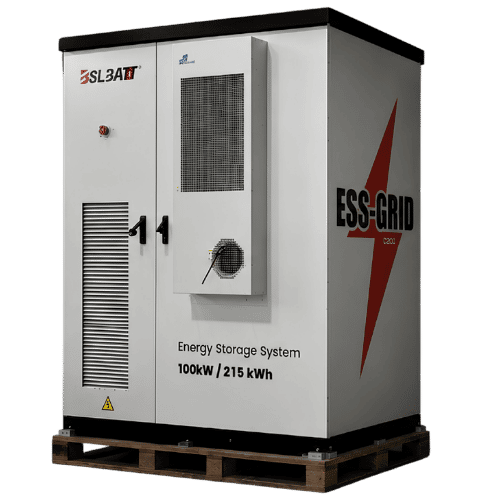

BSLBATT ESS-GRID C125

The BSLBATT ESS-GRID C125 is an integrated energy storage system for commercial and industrial energy management, microgrid, and grid-connected applications. It combines lithium iron phosphate (LFP) battery technology, power conversion, intelligent system management, and integrated protection to deliver a compact, highly integrated solution for reliable energy storage.

The system features a 215 kWh battery capacity and 100 kW rated AC power, with an integrated design that incorporates battery packs, PCS power modules, cooling, fire protection, monitoring, and control. Optional photovoltaic charging and switching modules can also be integrated for applications that require combined solar generation and energy storage.

Key Specifications

Rated battery capacity: 215 kWh
Rated AC power: 100 kW
Rated system voltage: 768 V
Battery cell capacity: 280 Ah
Nominal AC: 144 A
Rated AC voltage: 400 V, 3P+N+PE, 50 Hz
MPPT/String input: 2/4
Rated/continuous DC power/ MPPT: 50 kW
Maximum DC power/MPPT: 55 kW
Maximum PV input voltage: 1000 V
MPPT voltage range/MPPT: 200–850 V
Dimensions (W × D × H): 1800 × 1200 × 2300 mm
Approx. Weight: 3020 kg
Protection rating: IP54

Product Benefits

The ESS-GRID platform combines energy storage, power conversion, cooling, monitoring, and protection in one cabinet for commercial and industrial use.
The system supports grid-connected, islanded, and microgrid operation, with optional PV charging and switching modules.
Monitoring and control are available via RS485, CAN 2.0, Ethernet, and dry-contact interfaces.
The system includes fire protection, smoke detection, flood sensing, door monitoring, lightning protection, and emergency stop.
The integrated cabinet design reduces footprint and system complexity for C&I energy storage applications.
