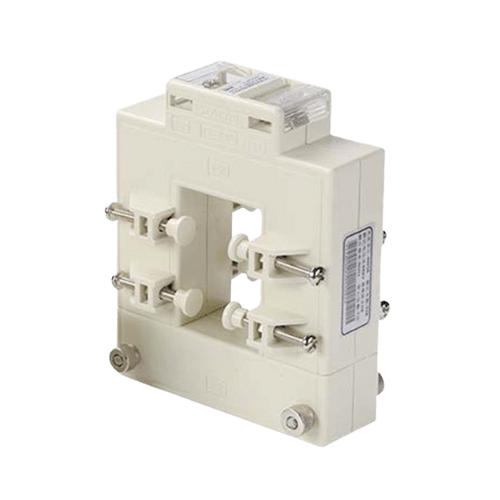

ATESS CT 200/500/1000

The ATESS CTs are the current transformers that accompany the ATESS Smart Meter. They are essential components for accurate current measurement in an electrical system. Current Transformers are used to step down high currents to a lower, more manageable level that can be safely and accurately measured by the ATESS Smart Meter.

They come in three different models for flexibility in application, catering to various current measurement requirements and installation environments

Models: CT200, CT500, and CT1000

Key Specifications

Rated Voltage: AC0.66KV
Rated Frequency: 50-60Hz
Ambient Temperature: -30°C~70°C
Altitude: ≤3000m
Power frequency withstand voltage: 3000V/1min 50Hz
Perforation size: 27*27 | 36*36 | 40*40
Current rate: 200/1A | 500/1A | 1000/5A
Rated load (VA): 1.5 | 2.5 | 10
Accuracy level: 1 | 0.5 | 0.5

Product Benefits

The ATESS CT comes in multiple models, which allows for selection based on the specific requirements of the electrical system.
All CT models share a rated voltage of AC0.66KV and have a power frequency withstand voltage of 3000V/1min 50Hz. These specifications indicate that the CTs are built to operate safely and reliably in demanding electrical environments.
They are designed to function effectively across a broad range of conditions, with an ambient temperature tolerance of -30°C to 70°C and an ability to operate at altitudes up to ≤3000m.
The ATESS CT provides defined accuracy levels, with the CT500 and CT1000 models achieving an accuracy level of 0.5, while the CT200 has an accuracy level of 1. This ensures precise current measurement for appropriate metering applications.
They are compatible with standard grid frequencies, operating at a rated frequency of 50-60Hz.
