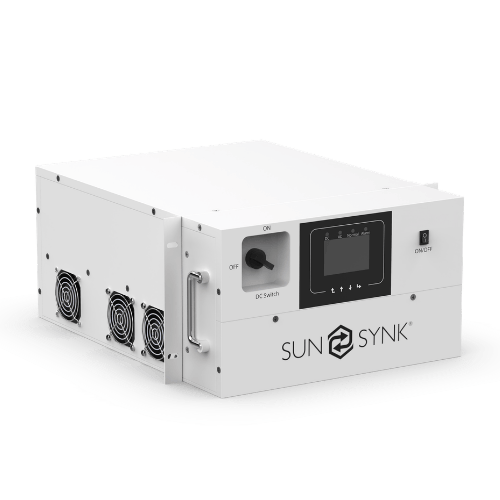

7.6kW Sunsynk Rack-Mount Hybrid Inverter

The Sunsynk 7.6kW Rack-Mounted Hybrid Inverter is a compact, high-efficiency energy management solution designed for modern residential and light commercial installations. Its rack-mount form factor allows for seamless integration into server racks, battery cabinets, or standard 19″ enclosures – perfect for space-constrained environments such as apartments, home storage systems, or small businesses.

This Sunsynk inverter manages solar, battery, grid, and generator inputs simultaneously, providing uninterrupted power and intelligent load control. With dual MPPT trackers, high PV input voltage, and UPS-grade switching, the SUNSYNK-7.6K-SG02LP1 maximises self-consumption, reduces electricity bills, and delivers reliable backup during outages. The unit supports remote monitoring via the Sunsynk Link app and is compatible with lithium and lead-acid batteries.

Sunsynk 7.6 kW Rack mount Hybrid inverter SP

Key Specifications

Battery Parameters

Voltage Range: 40~60V
Max. Charge / Discharge Current: 190A / 190A

PV String Input

Max. PV Access Power: 9880W
PV Input Voltage: 370V (100V-500V)
MPPT Voltage Range: 150~425V
PV Input Current: 26A+26A

AC Input/Output

Max. AC Power: 7600W
Peak Power (off-grid): 2 times of rated power, 10s
Max. Continuous AC Passthrough (Grid to Load): 50A

Efficiency & Protection

IP Rating: IP65
Max. Efficiency: 97.6%

Product Benefits

With an IP65 rating, this 7.6kW Sunsynk Rack-Mount inverter withstands dust, rain, and direct water jets – no need for an additional protective enclosure. Ideal for exposed installations in coastal or high‑humidity regions.
At less than 30 dB, it runs quieter than a library. Perfect for living spaces, home offices, or noise‑sensitive environments.
The compact 19‑inch rack‑compatible dimensions (549W × 482D) allow easy integration into standard server racks, electrical panels, or custom enclosures – saving floor space and creating a clean, professional installation.
The intelligent cooling system automatically adjusts fan speed based on load and temperature, balancing performance with energy efficiency and reduced wear.
Native RS485 and CAN communication ports enable plug‑and‑play connection to most lithium‑ion batteries with BMS, ensuring optimal charging profiles and battery health monitoring.
5‑Year Standard Warranty: Backed by Sunsynk’s global support network, providing confidence for long‑term system ownership

To activate the warranty on your units, please register them here: https://www.sunsynk.org/warranty

Please note: If you are based in South Africa, a valid Certificate of Compliance (COC) must be submitted with all required documentation. Incomplete submissions may result in unsuccessful warranty registration.
