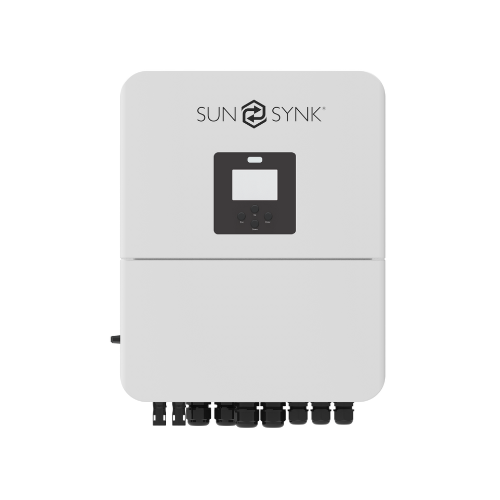

The Sunsynk Compact 5kW is a single-phase hybrid inverter with a non-isolated topology for efficient energy conversion. It delivers a rated AC power output of 5,000W and can supply up to 11,000W surge power. It supports a wide PV input voltage range of 125 to 500V across two MPPT trackers, allowing flexible solar array configurations. Designed to work with lead-acid or Li-Ion batteries (40-60V DC), it handles up to 120A charging/discharging current.
The unit is lightweight at 19kg, offers natural cooling, and maintains quiet operation below 30dB. Users can monitor and manage the system through an LCD+LED display, with optional wireless and wired communication options such as Wi-Fi, Bluetooth, 4G, and LAN.
Model: SYNK-5K-SG04LP1-SM2
It supports a large solar array with a max. PV access power of 10000W, significantly greater than its 5000W rated AC output, allowing for flexibility in system sizing and maximising solar generation potential.
Extended warranty options (5 years standard, 10 years with Sunsynk or BSLBATT battery), reflecting confidence in product reliability.
Flexible grid compatibility with adjustable power factor range from 0.8 leading to 0.8 lagging and compliance with grid regulations.
Efficient energy conversion with a max efficiency of 97.6%, Euro efficiency of 96.5%, and 99% MPPT efficiency for optimal solar tracking.
Lightweight and compact form factor at 19 kg, with dimensions that facilitate easier installation.
It uses Natural Cooling, resulting in a very low noise level of less than 30dB, which is beneficial when installed near living areas.
